Add a New Casing Tally

Add a new casing tally to the casing section.

Steps

1. Click .

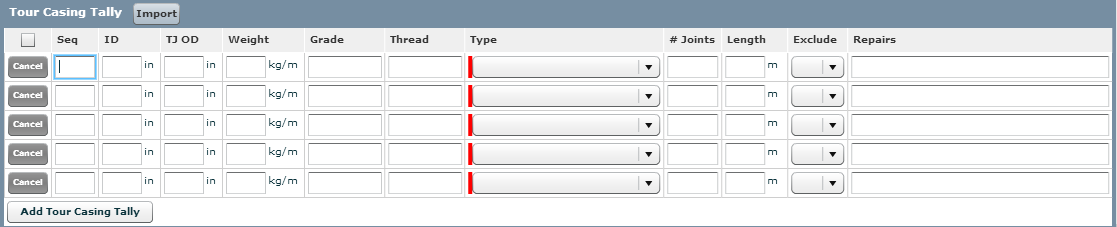

   The Tour Casing Tally window opens.


2. Type the Sequential number of the casing tally.

3. Type the casing tally ID that relates to the inside diameter of the selected casing.

4. Type the casing tally TJ OD that relates to the outside diameter of the selected casing.

5. Type the casing tally Weight.

6. Type the casing tally Grade that identifies and categorizes the strength of the casing.

7. Type the casing tally Thread that identifies the casing string, if applicable.

8. Select the casing tally type from the Type drop-down list.

9. Type the number (#) of Joints for the casing tally.

10. Type the casing tally Length.

11. Enable Yes or No on whether to Exclude this casing tally from the IADC report.

12. Type a casing tally Repairs comments that details casing tally repair for additional reference.

13. Click .
